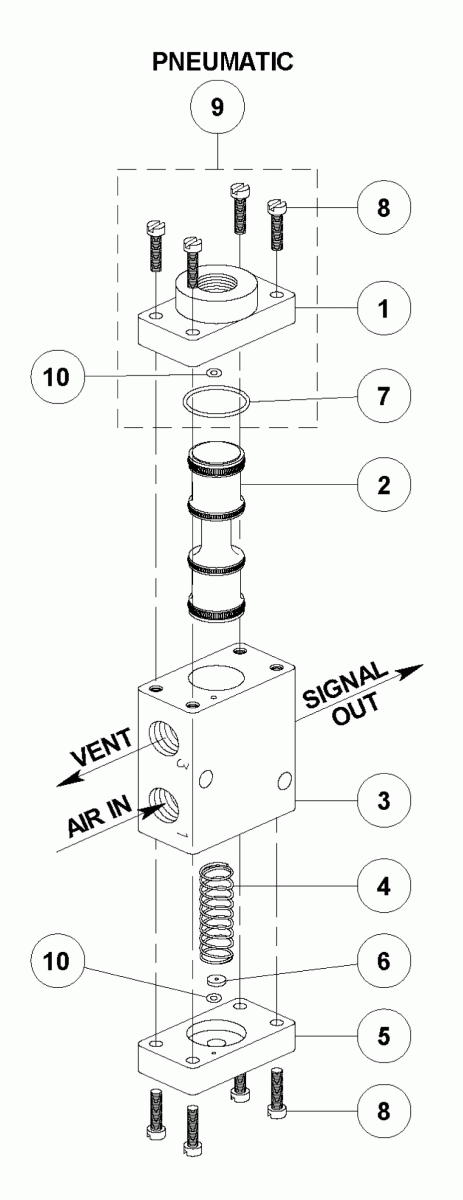

	2229-000	Pneumatic Control Valve

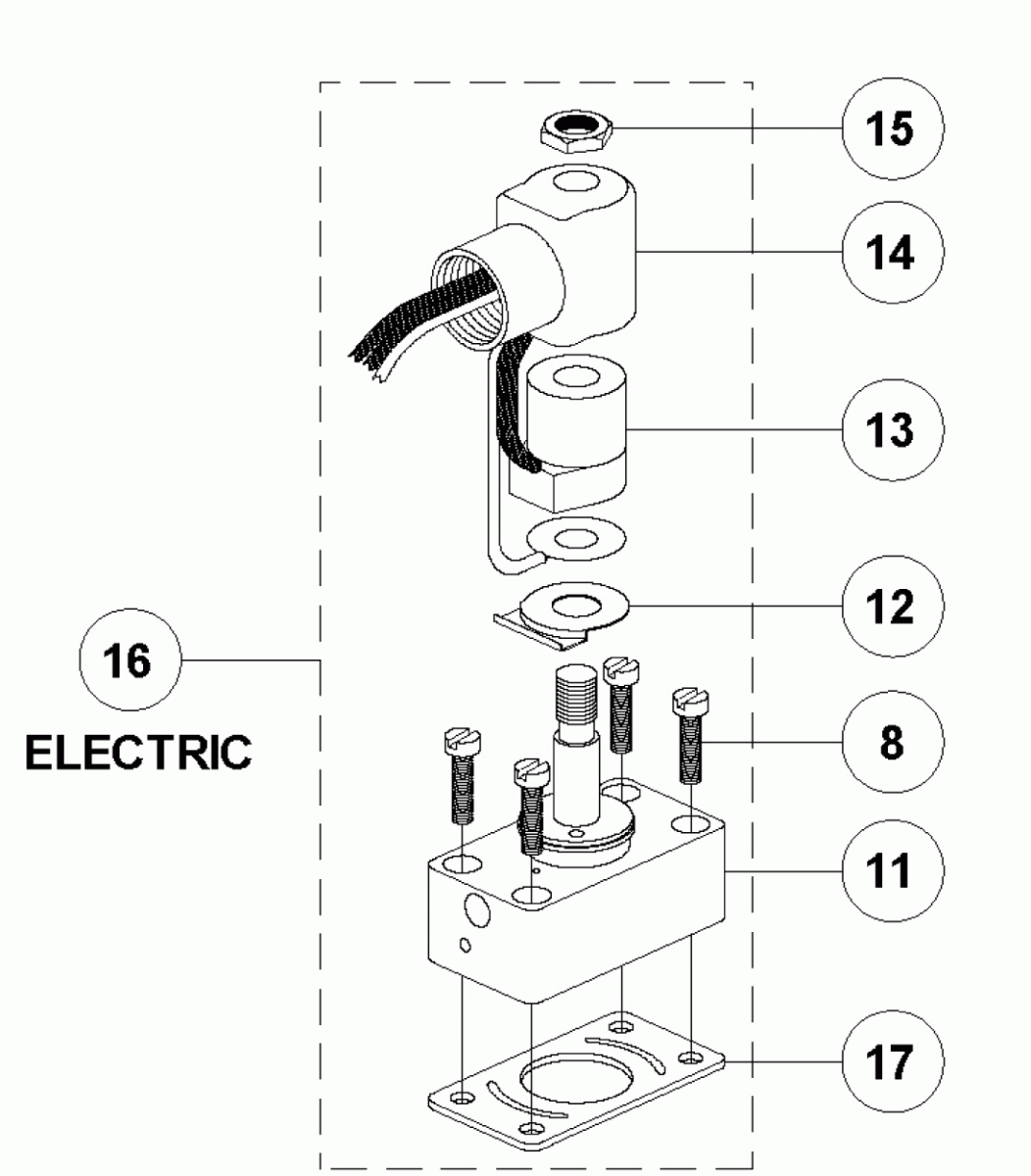

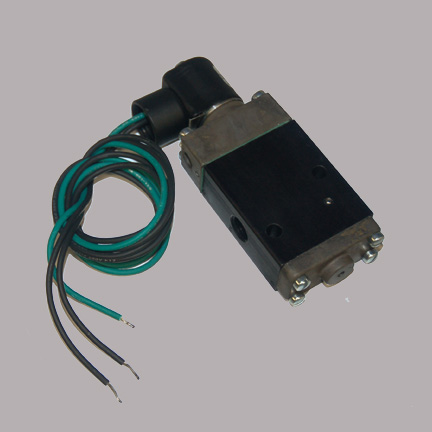

	2229-100	Electric Control Valve, 12 V DC
	2229-101	Electric Control Valve, 12 V AC
	2229-102	Electric Control Valve, 24 V DC
	2229-100	Electric Control Valve, 24 V AC
	2229-105	Electric Control Valve, 120 V AC
No	Part No	Description
	2229-000-99	Replacement Parts Kit (Pneumatic)
	2229-100-99	Replacement Parts Kit (Electric)
1	N/A	Air Operator Cap
2 *+	2229-000-02	Plunger w/ O-Ring
3	N/A	Valve Body
4 *+	2229-000-04	Spring
5	N/A	Spring Retainer
6 *+	2229-000-06	Filter Disk
7 *	2229-000-07	O-Ring (Large)
8	N/A	Screw (8)
9	2229-000-09	Air Operator Assembly
10 *+	2229-000-10	O-Ring (2 Ea)
11	N/A	Electric Operator Cap
12	N/A	Coil Cover Bottom
13	2229-100-03 2229-101-03 2229-102-03 2229-100-03 2229-105-03	Coil 12 V DC Coil 12 V AC Coil 24 V DC Coil 24 V AC Coil 120 V AC
14	N/A	Coil Cover
15	N/A	Nut
16	2229-100-06 2229-101-06 2229-102-06 2229-100-06 2229-105-06	Solenoid Pilot Assembly, 12 V DC Solenoid Pilot Assembly, 12 V AC Solenoid Pilot Assembly, 24 V DC Solenoid Pilot Assembly, 24 V AC Solenoid Pilot Assembly, 120 V AC
17 +	2229-100-07	Gasket (Electric Only)
* Included in Replacement Parts Kit - Pneumatic + Included in Replacement Parts Kit - Electric
